Through-the-Wall Wine Cellar Cooling Units

It’s time to get serious about your fine wine collection. Wine Guardian patented Through-the-Wall (TTW) wine cellar cooling units bring exceptional airflow, optimal temperature control, and advanced connectivity features to ensure you enjoy 100% of the flavors of your wine.

Designed and assembled in the USA from commercial-grade components, TTW units combine maximum efficiency with unmatched reliability to create peak wine storage conditions for your small- to mid-sized wine room or wine wall.

Buy Online
Find a Distributor

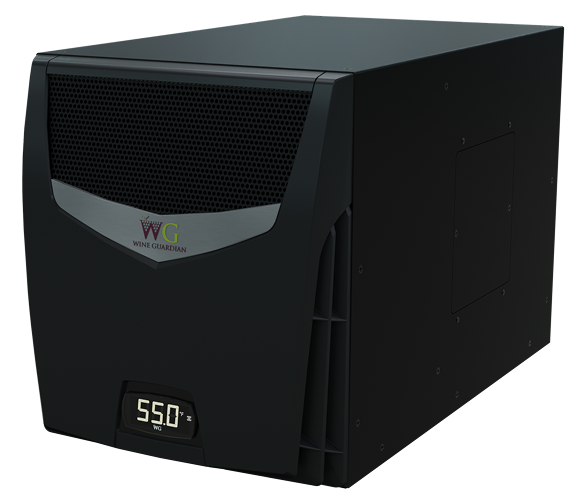

Front view of the TTW Sentinel series unit

Introducing the TTW Family

Wine Guardian offers an expanded range of Through-the-Wall (TTW) systems, each designed to meet specific wine storage needs. Available for all series, our TTW units come in a range of capacity options to suit your cellar or display size. Explore the features of our system by hovering on the highlighted components below.
Defender
DIY-friendly Exterior Wall Installation

Through-the-Wall systems are designed to be installed between the wall studs in your wine room without needing the help of a licensed contractor. Just cut a hole in the wall, install the wall sleeve, and slide the unit through the opening. The internal condensate re-evaporation system in Sentinel and Defender units means connecting a drain line may not be required. Defender Series units can be installed through an exterior wall and withstand outdoor conditions such as rain, snow, and temperatures from 0°F (-18°C) to 125°F (52°C).

Multiple Capacity Options

All Wine Guardian Through-the-Wall models are available in 1000, 2000, or 4000 BTU/h capacity options to meet a variety of application needs—from small wine displays to mid-sized wine rooms.

Whisper-Quiet Operation

Defender Series TTW units are designed to be the quietest through-the-wall wine cellar cooling systems on the market. The combination of internal sound reduction foam and additional sound attenuation material around the grilles means Defender units can operate at as low as 48 dBA at 6ft (2m).

Integrated Temperature and Humidity Controller

Monitor and control cellar temperature from the integrated controls on the face of the TTW unit, or from your smart device via Bluetooth or NFC. Includes integrated humidistat to allow for connection to a Wine Guardian freestanding humidifier.

Defender
Greater Energy Efficiency

Optimized for maximum energy efficiency, the TTW can save you hundreds in energy costs and meets U.S. Department of Energy efficiency standards for walk-in refrigeration systems.

Eco-friendly 513A Refrigerant

In accordance with U.S. environmental regulations, Wine Guardian TTWs utilize a low global warming potential 513A refrigerant, making them the most environmentally friendly Through-the-Wall cooling systems in the U.S. market.

Fail-safe Protections

The TTW’s advanced fail-safe features protect your system and cellar from damage:

  • Condensate overflow switch: Automatic shutoff to prevent condensate leakage and water damage.
  • Loss-of-charge switch: Automatic shutoff to prevent damage to the compressor.
  • Auto-reset high pressure switch: Automatic shutoff if ambient conditions exceed system parameters—automatically resets when conditions return to normal to minimize system downtime without requiring a manual reset.

Sentinel
DIY-friendly Installation

Through-the-Wall systems are designed to be installed between the wall studs in your wine room without needing the help of a licensed contractor. Just cut a hole in the wall, install the wall sleeve, and slide the unit through the opening. The internal condensate re-evaporation system in Sentinel and Defender units means connecting a drain line may not be required.

Multiple Capacity Options

All Wine Guardian Through-the-Wall models are available in 1000, 2000, or 4000 BTU/h capacity options to meet a variety of application needs—from small wine displays to mid-sized wine rooms.

Integrated Temperature and Humidity Controller

Monitor and control cellar temperature from the integrated controls on the face of the TTW unit, or from your smart device via Bluetooth or NFC. Includes integrated humidistat to allow for connection to a Wine Guardian freestanding humidifier.

Sentinel
Greater Energy Efficiency

Optimized for maximum energy efficiency, the TTW can save you hundreds in energy costs and meets U.S. Department of Energy efficiency standards for walk-in refrigeration systems.

Eco-friendly 513A Refrigerant

In accordance with U.S. environmental regulations, Wine Guardian TTWs utilize a low global warming potential 513A refrigerant, making them the most environmentally friendly Through-the-Wall cooling systems in the U.S. market.

Fail-safe Protections

The TTW’s advanced fail-safe features protect your system and cellar from damage:

  • Condensate overflow switch: Automatic shutoff to prevent condensate leakage and water damage.
  • Loss-of-charge switch: Automatic shutoff to prevent damage to the compressor.
  • Auto-reset high pressure switch: Automatic shutoff if ambient conditions exceed system parameters—automatically resets when conditions return to normal to minimize system downtime without requiring a manual reset.

Classic
Multiple Capacity Options

All Wine Guardian Through-the-Wall models are available in 1000, 2000, or 4000 BTU/h capacity options to meet a variety of application needs—from small wine displays to mid-sized wine rooms.

Integrated Temperature Controller

Monitor and control cellar temperature from the integrated controls on the face of the TTW unit, or from your smart device via Bluetooth or NFC.

Classic
Greater Energy Efficiency

Optimized for maximum energy efficiency, the TTW can save you hundreds in energy costs and meets U.S. Department of Energy efficiency standards for walk-in refrigeration systems.

Eco-friendly 513A Refrigerant

In accordance with U.S. environmental regulations, Wine Guardian TTWs utilize a low global warming potential 513A refrigerant, making them the most environmentally friendly Through-the-Wall cooling systems in the U.S. market.

Fail-safe Protections

The TTW’s advanced fail-safe features protect your system and cellar from damage:

  • Condensate overflow switch: Automatic shutoff to prevent condensate leakage and water damage.
  • Loss-of-charge switch: Automatic shutoff to prevent damage to the compressor.
  • Auto-reset high pressure switch: Automatic shutoff if ambient conditions exceed system parameters—automatically resets when conditions return to normal to minimize system downtime without requiring a manual reset.

View Other Side

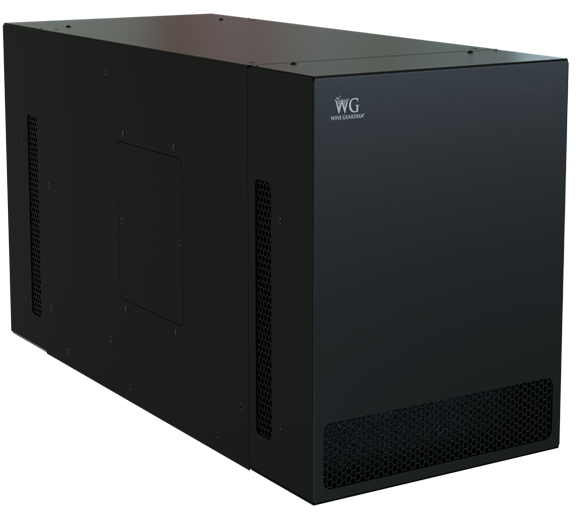

Defender

Series

For the most demanding wine cellar applications, the TTW Defender Series maintains ideal cellar conditions in ambient temperatures from 0°F (-18°C) to 125°F (52°C), along with a variety of extra features.

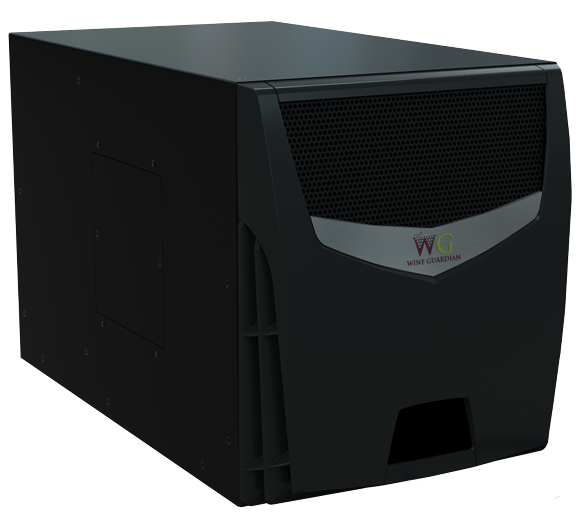

Sentinel

Series

The TTW Sentinel Series is a versatile cooling system, perfect for a wide range of cellar or wine display applications.

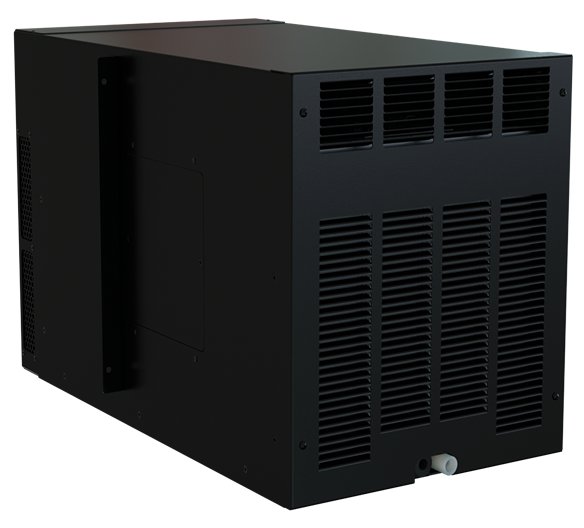

Classic

Series

For the value-conscious wine collector, the TTW Classic Series provides the essential features for precise temperature control in a simplified, streamlined unit.

EXPLORE OTHER MODELS

Defender

Defender

Series
Sentinel

Sentinel

Series
Classic

Classic

Series

TTW Cooling Unit Key Features & Benefits

Whisper-Quiet Operation

Whisper-Quiet Operation

Designed to limit vibrations and operational noise that disturb the ambience of your wine space, TTWs can be as quiet as 48 dBA at 6 feet (2 meters).

Unrivaled Energy Efficiency

Optimized for maximum energy efficiency, the Wine Guardian TTW can save you hundreds in operation costs compared to other through-the-wall systems on the market. Save up to $4,400 in electricity bills over five years with select TTW models.

Precise Temperature & Humidity Control

Precise Temperature & Humidity Control

The TTW can consistently achieve temperatures ranging from 42°F (6°C) to 75°F (24°C), minimizing fluctuations in your cellar that harm your wine collection. An optional free-standing humidifier can be installed to achieve a constant relative humidity of 55% – 65%.

Designed for the Do-It-Yourselfer

Designed for the Do-It-Yourselfer

The TTW’s DIY-friendly design makes installation possible for any wine aficionado. Just insert the TTW into your cellar wall, make your drain connection if needed, plug it in, and enjoy your wine. A licensed contractor is not required. All TTW units are designed to fit legacy and competitor wall sleeves.

Eco-Friendly Refrigerant

Eco-Friendly Refrigerant

Wine Guardian TTWs employ a non-flammable refrigerant with a low global warming potential in compliance with U.S. environmental regulations.

Fail-Safe Protections

The TTW’s advanced fail-safe features protect your system and cellar from:

  • Water Damage. When it detects a buildup of condensation within the unit, the TTW’s condensate overflow switch will automatically shut it off, preventing further water accumulation and leakage that would damage your cooling system and cellar.
  • Compressor Damage. In the event of a refrigerant leak, the TTW’s loss-of-charge switch will turn off the unit to prevent damage to the compressor and further charge loss.
  • System Downtime. When cellar conditions exceed the TTW’s safe operating parameters, the auto-reset high pressure switch will shut off the unit to prevent system damage. The unit will reactivate when conditions return to normal, without requiring a manual reset.

Complete Cellar Control

With a built-in thermostat and humidistat, Wine Guardian lets you monitor temperature and humidity and control temperature right at the face of the TTW unit. Want to control and monitor the conditions from your smartphone, tablet, or smart home device? Not a problem. Thanks to the TTW controller’s Bluetooth® and NFC capabilities, you can connect to your TTW anywhere in your home — so you can monitor your wine cellar wherever is most convenient to you.

Choose Your Perfect Cooling Solution

Enhance your cellar with these additional features, standard with select series.

Sentinel and Defender Series
Sound Reduction Foam

Sound Reduction Foam.
Internal sound attenuation material to reduce operational noise. (Sentinel Series, Defender Series)

Humidity Sensor

Humidity Sensor.
Combined thermostat and humidistat to allow seamless humidifier connection and precise humidity control. (Sentinel Series, Defender Series)

Condensate Evaporator

Condensate Evaporator.
Re-evaporation system to prevent condensate buildup and leakage without the need for a drain line connection. Note: A drain connection may be required if the unit exhausts to an unconditioned space or the installed area has an inadequate vapor barrier. (Sentinel Series, Defender Series)

Defender Series Only
Ultra Quiet Package

Ultra Quiet Package.
Additional sound reduction material for extra quiet operation. (Defender Series)

Exterior Wall Package

Exterior Wall Package.
Exterior-rated grille and coated condenser coil to allow for installation through an exterior wall—operates in ambient temperatures from 0°F (-18°C) to 125°F (52°C). (Defender Series)

Electric Heater

Electric Heater.
Heating coil to warm cellar air when temperature drops below the set point. (Defender Series)

Questions? Speak With a Wine Cooling Specialist

Capacity Options

Available for all series

~1000 BTU/h (0.3 kW)

~2000 BTU/h (0.6 kW)

~3500 BTU/h (1.0 kW)

Compare Models

Classic Series

Classic

Series

Sentinel Series

Sentinel

Series

Defender Series

Defender

Series

FEATURE
COMPARISON		Classic SeriesClassicSentinel SeriesSentinelDefender SeriesDefender
1000, 2000, and 3500
BTU/h Capacity Options
230V 50Hz or
120V 60Hz Power Supply
USA-Designed and Assembled
Coated Evaporator Coil
Fail-Safe Protections
Eco-Friendly Refrigerant
Bluetooth & NFC Controls
Humidity Sensor
Condensate Evaporator
Sound Reduction Foam
Ultra Quiet Package
Exterior Wall Package
Electric Heater
Click to Compare
TTW Brochure

Download The TTW Brochure

Get your Free Copy

One year ago, we started the air conditioner, and it has held 59 degrees steady for ONE YEAR, and it has not even once hiccupped. I am so glad I bought the Wine Guardian air conditioner! I installed the A/C myself and it has worked perfectly ever since.
Allen Wine Cellar Design
More Reviews

Through-the-Wall Cooling Units copy System Specifications

Loading, please wait...
Model Capacity Length Width Height Electrical (V/ph/Hz) Weight Line Frequency

TTW01B Classic

1440 BTU/h @ 75 ºF (24 ºC). If you have different condensing side conditions, check our spec sheet for performance.

25.8"

14.1"

15.75"

120/1/60

58 lbs

60 Hz

TTW01B Sentinel

1440 BTU/h @ 75 ºF (24 ºC). If you have different condensing side conditions, check our spec sheet for performance.

27.6"

14.1"

15.75"

120/1/60

58 lbs

60 Hz

TTW01B

1440 BTU/h @ 75 ºF (24 ºC). If you have different condensing side conditions, check our spec sheet for performance.

33.8"

14.1"

15.75"

120/1/60

65 lbs

60 Hz

TTW02B Classic

2,650 BTU/h @ 75ºF (24ºC). If you have different condensing side conditions, check our spec sheet for performance.

25.8"

14.1"

15.75"

120/1/60

64 lbs

60 Hz

TTW02B Sentinel

2,650 BTU/h @ 75 ºF (24 ºC). If you have different condensing side conditions, check our spec sheet for performance.

27.6"

14.1"

15.75"

120/1/60

64 lbs

60 Hz

TTW02B Defender

2650 BTU/h @ 75 ºF (24 ºC). If you have different condensing side conditions, check our spec sheet for performance.

33.8"

14.1"

15.75"

120/1/60

65 lbs

60 Hz

TTW04B Classic

3,760 BTU/h @ 75 ºF (24 ºC). If you have different condensing side conditions, check our spec sheet for performance.

25.8"

14.1"

15.75"

120/1/60

71 lbs

60 Hz

TTW04B Classic

3,760 BTU/h @ 75 ºF (24 ºC). If you have different condensing side conditions, check our spec sheet for performance.

27.6"

14.1"

15.75"

120/1/60

71 lbs

60 Hz

TTW01 Classic

0.422 kW @ 24ºC. If you have different condensing side conditions, check our spec sheet for performance.

66 cm

36 cm

40 cm

240/1/50

26.3 kg

50 Hz

TTW01 Sentinel

0.422 kW @ 24ºC. If you have different condensing side conditions, check our spec sheet for performance.

70 cm

36 cm

40 cm

240/1/50

26.3 kg

50 Hz

TTW01

0.422 kW to 0.258 kW

86 cm

36 cm

40 cm

240/1/50

29.5 kg

50 Hz

TTW02 Classic

0.776 kW @ 24ºC. If you have different condensing side conditions, check our spec sheet for performance.

66 cm

36 cm

40 cm

240/1/50

29 kg

50 Hz

TTW02 Sentinel

0.776 kW @ 24ºC (75ºF). If you have different condensing side conditions, check our spec sheet for performance.

70 cm

36 cm

40 cm

240/1/50

29 kg

50 Hz

TTW04 Classic

1.101 kW @ 24ºC. If you have different condensing side conditions, check our spec sheet for performance.

66 cm

36 cm

40 cm

240/1/50

32.2 kg

50 Hz

TTW01

0.776 kW to 0.419 kW

86 cm

36 cm

40 cm

240/1/50

32.3 kg

50 Hz

TTW04 Sentinel

1.101 kW @ 24ºC. If you have different condensing side conditions, check our spec sheet for performance.

70 cm

36 cm

40 cm

240/1/50

32.2 kg

50 Hz

TTW04 Defender

0.829

86 cm

36 cm

40 cm

240/1/50

35.4

50 Hz

Cooling capacity rated at 80°F(27°C) ambient. Many variables affect proper unit sizing, including type of construction, insulation values, amount of glass, residential vs. commercial applications, etc. Proper wine cellar cooling units size should only be determined by using the Wine Guardian sizing calculations.
